Support 4Kx2K HDMI Transceiver Over Fiber

FOB Reference Price:Get Latest Price
  • 1 - 9 Pairs
    $195.00
  • 10 - 99 Pairs
    $175.00
  • >=100 Pairs
    $165.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
E-link
Model Number:
LNK-106M
Optical Fiber:
Multi- mode 850nm
Resolution:
Up to 4Kx2K
Distance:
300m
Standard:
HDMI 1.4a
Data Rate Per Lane:
10GHz Gbps
Product Type:
HDMI Transceiver
Refresh Rate:
Up to 120 Hz
Support 3D:
Yes
Power Supply:
5V+/-5%
Keyword:
4Kx2K HDMI Transceiver
Supply Ability
Supply Ability:
5000 Pair/Pairs per Month
Packaging & Delivery
Packaging Details
4k HDMI Transceiver Standard Export Packing or Customized Packing
Port
shenzhen
Lead Time :
Sample: 2 days after receiving payment; Bulk Order: To confirm

Support 4Kx2K HDMI Transceiver Over Fiber

Product Description



Model: LNK- 106M



Overview

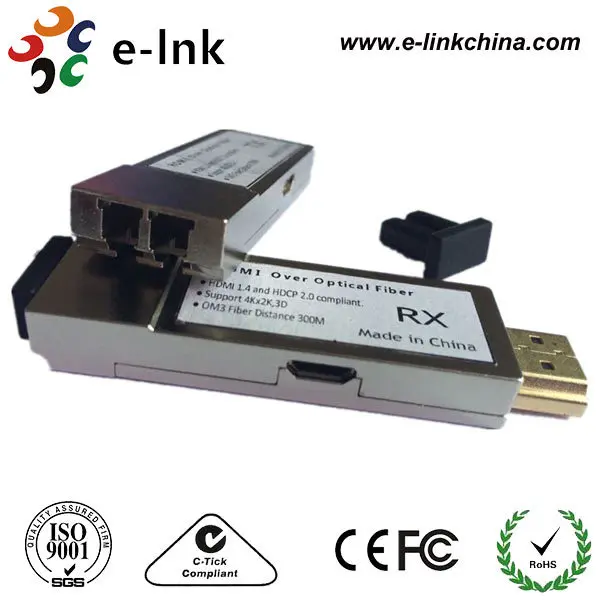

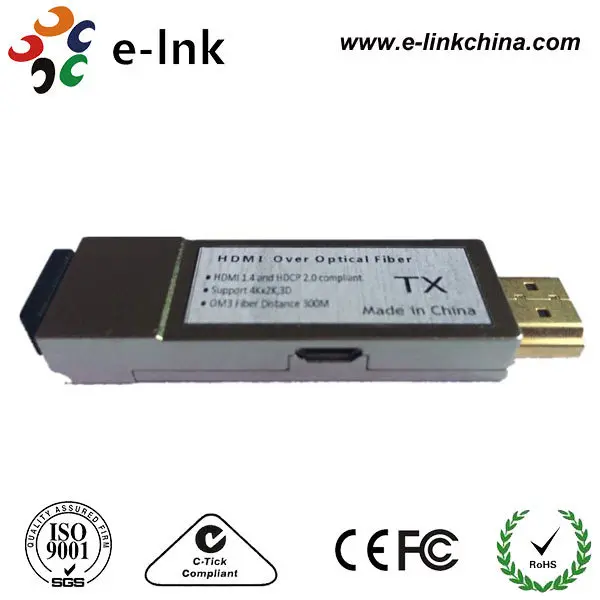

The 4K HDMI optical transceiver are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 1.4a signal over multimode optical fiber at 850nm, up to distances of 300m, at a resolution of 4Kx2K. 4 K HDMI

OPTICAL TRANSCEIVER -T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers. 4 K HDMI OPTICAL TRANSCEIVER -R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.



Features

  • HDMI 1.4a Support
  • HDCP Support
  • DDC CEC HPD Signal Support
  • Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber
  • Supports All Modes up to 4Kx2Kx30 Resolution
  • Standard HDMI Connector
  • Integrated USB Connector for Power
  • Double Power Supply (HDMI 5V&USB)
  • Hot-Pluggable
  • EMI/RFI Resistant
  • 850nm VCSEL and PIN Photodetector
  • 2-Wire Interface
  • Typical Power Dissipation 1420 mW
  • (Source), 1220 mW (Sink)
  • Operating Case Temperature: 0~70°C

Technical Indexes



Parameter

Specifications

Data Rate Per Lane

10GHz Gbps

Power Consumption

1420 mW TX Side

1220 mW RX Side

Power Supply Voltage

5V+/-5%

Resolution

Up to 4Kx2K

Refresh Rate

Up to 120 Hz

Depth

Up to 48-bit

Support 3D

Yes

Support HDCP

Yes

Wavelength

850

Bit Error Rate Performance

1.00E-12

Laser Output Power

Class 1 EN 60825-1 2007

EN 60825-2 A2 2010

Dimensions( L x W x H)



Electrical Interface

19 Pins HDMI A Type Port

4 Pins USB Standard A

Pulling Force

111 N
